Introduction:

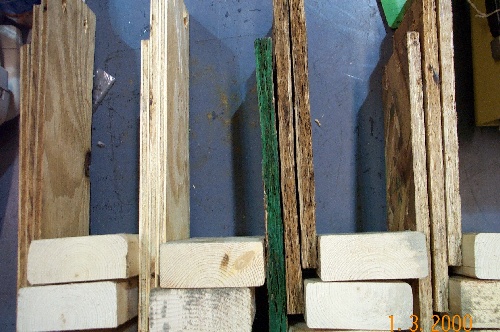

Oriented Strand Board O.S.B. offers an economical alternative to plywood as a sheathing material for woodframe construction. Its popularity has been assisted by its experimentally proven performance in shear wall tests. A question that remains is its durability. Subjected to extended weathering, will O.S.B. continue to provide performance comparable to that of plywood? To answer this question, an experimental program is proposed.

Subassembly Development
The focus of the test program will be the evaluation of the performance of exterior shear walls under various weathered conditions. The performance might be characterized best by the behavior of the connection between the sheathing and the sill plate or stud (Figure 1). For simplicity in testing, the sill plate to sheathing connection will be modeled experimentally. The test setup consists of a split sill plate or vertical stud nailed to a portion of sheathing panel. Displacement will be applied to either end of the sill using an Instron test machine.

Research Team
Clay Naito, Principal Investigator
Kaysi-ann Spence, Undergraduate Research Assistant
Mel Oxenreider, Undergraduate Research Assistant
