Experimental Evaluation of Concrete Confined with Varying Pressure and Development of Behavioral Characteristics of Confined Concrete

Background:
In regions of high seismicity reinforced concrete plays a vital role in providing a safe structural environment. The confining action of concrete provides structural members with resistance to the elevated demands imposed by earthquakes. To improve the economy of new and rehabilitative design strategies the engineer must be able to accurately predict the response of reinforced concrete under these demands. This starts with a clear undersanding of the stress-strain behavior of confined concrete.

From the available literature, it is seen that the analytical models used for the prediction of axial stress-strain behavior of confined concrete are often based on constant confining pressure. It is experimental tests on concrete confined by Fiber Reinforced Polymer (FRP) jackets this is shown to be untrue. This is due to the characteristics of jacketing materials, which apply variable confining stresses as the concrete dilates. To address this deficiency variable confinement models have been developed. These models, however, also lack consistency in providing accurate predictions.

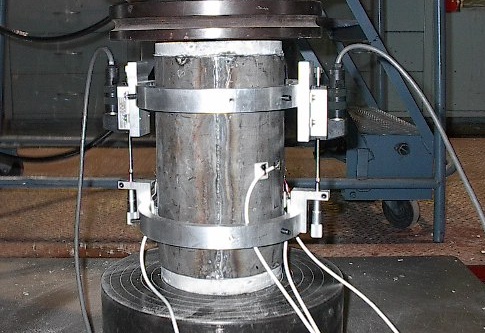

To develop improved modeling techniques a experimental and analytical research program is being conducted. The experimental research program examines the effect of jacketing on concrete columns under axial load. The response of glass and carbon FRP and steel jacketed concrete will be compared to the performance of concrete under tri-axial stress distributions. From these studies exisiting models will be examined and new models will be developed.

Researchers:
Clay Naito, Principal Investigator
Fatih Cetisli, Doctoral Student Researcher

Publications:
1. Naito, C., Cetisli, F., "Accuracy Improvements for Variable and Constant Confinement Concrete Models," Proceedings International Symposium on Confined Concrete, Changsha, China, June, 2004.

2.Cetisli, F. and Naito C.J., 2003, "State of the Art of Analytical Prediction for Confined Concrete," ATLSS Report, Lehigh University, No. 03-24, October, 104 pp.

Sponsors:
Pennsylvania Infrastructure Technology Alliance

Other Participants:
Republic of Turkey, Ministry of National Education
