Development of Connection Details Between FRP Bridge Decks and Conventional Reinforced Concrete Parapets
PITA Project PIT-276-01

Background:

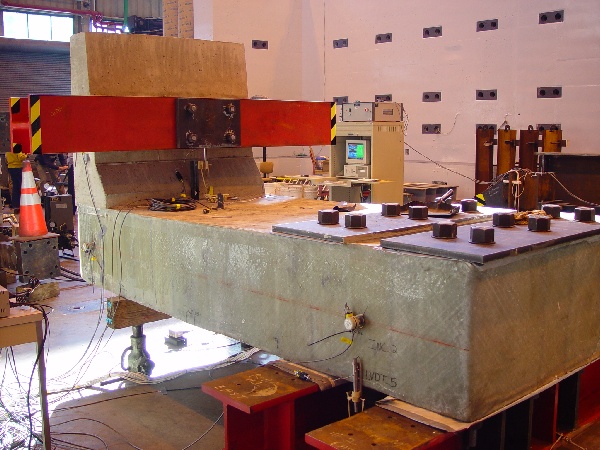

The aim of the research is to develop an effective means of anchoring reinforced concrete paprapets on FRP bridge decks. To assess the applicability of alternate transfer mechanisms, the measured responses are compared to AASHTO LRFD Specification Section 13 Railing design requirements. Four full-scale test specimens consisting of a protion of the FRP deck and reinforced concrete parapet were fabricated to match the as-built conditions in the Dubois Creek Bridge Demonstration Project constructed in PENNDOT District 4. The specimens measure 4-ft. wide by 10-ft. long and were tested to failure. The specimens are loaded at the parapet and restrained at the FRP deck. The load is applied quasi-statically under displacement control. The test program was completed in 2003.

Researchers:
Clay Naito, Principal Investigator
Seoksoon Lee, Graduate Student Researcher
Fyiad Constantine, Research Assistant

Publications:
Naito, C., Lee, S., Constantine, F., “PITA Project PIT-276-01 Laboratory Investigation of Glass Fiber Reinforced Polymer Bridge Slab to Reinforced Concrete Parapet Connection Details – Final Report,” ATLSS Report No.03-27, ATLSS Center, Lehigh University, December, 2003, 78 pages.

C. Naito, "Anchorage of Reinforced Concrete Parapets on GFRP Bridge Decks," ASCE Journal of Composites for Construction, Vol. 9, No.3, June 2005, pp.1-8.

Sponsors:
Pennsylvania Infrastructure Technology Alliance
Pennsylvania DOT

Other Participants:
Gannett Flemming
