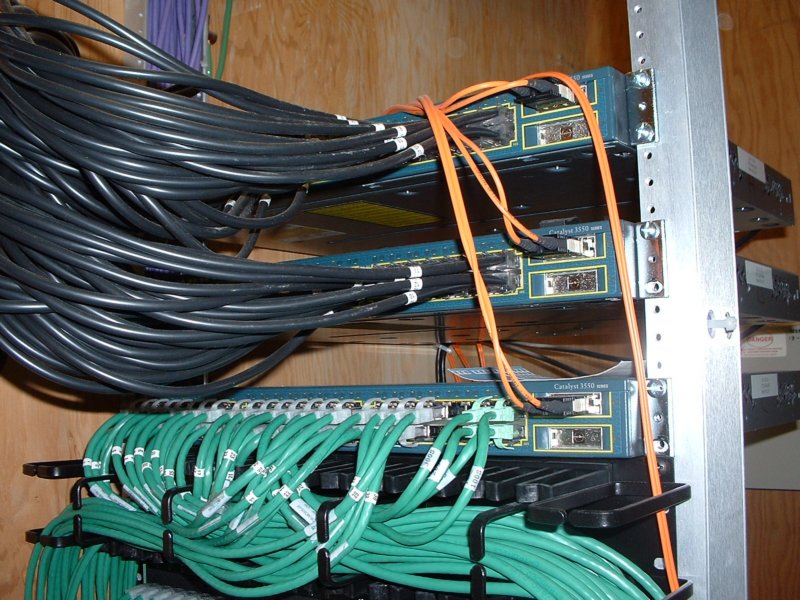

The cables travel from the front of the patch panels and plug into the Cisco 3550 switches. Note the orange fiber-optic cable on the right of each switch. This fiber travels down to room 004 where the main buidling switch is located.
